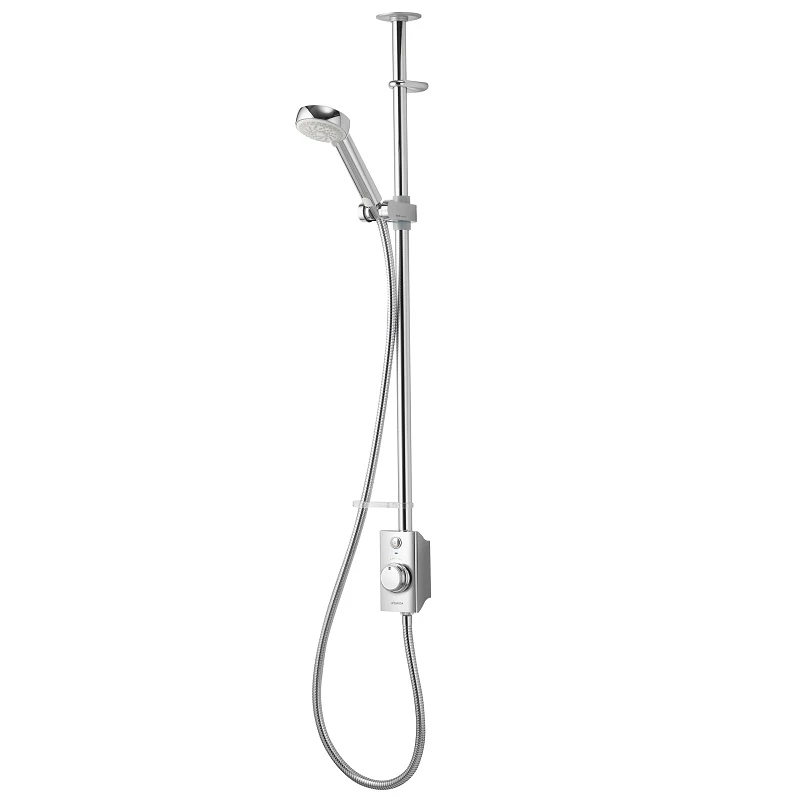

Aqualisa Visage Q Digital Smart Shower Exposed Adjustable – Gravity Pumped

Aqualisa Visage Q Digital Smart Shower Exposed Adjustable – Gravity Pumped (VSQ.A2.EV.20).

Stylish, easy to use, family friendly – Visage Q Smart Digital Shower combines outstanding performance with a sleek design to provide a quality showering experience for the family bathroom.

Engineered with you in mind and building on the digital shower technology that made Aqualisa a household name, Visage Q offers convenience and accessibility in the bathroom like never before.

Controlled easily through the Aqualisa App, which includes access to a water consumption dashboard. Safe family showering using thermostatic shower controls – set a maximum water temperature during installation for enhanced safety benefits. Eco functionality saves up to 33% on water consumption. 5 years parts and labour guarantee when registered with Aqualisa.

• Minimum pressure requirements –  Aqualisa SmartValve™ must be sited no higher than the base level of the cold water cistern
• Maximum pressure requirements – 1 bar (Gravity)
• Aqualisa SmartValve™ inlet fitting connections – 15mm push fit fittings, valve inlet centres 48mm, inlet supply positions – hot right, cold left
• Aqualisa SmartValve™ outlet fitting connection – 15mm push fit
• Permissible Aqualisa SmartValve™siting locations – Loft, airing cupboard, under bath
• Supply temperature – Cold inlet temperature 1˚C (minimum) – Cold inlet temperature 15˚C (maximum) – Hot inlet temperature 65˚C (maximum)
• Water system – Gravity
• Blended outlet temperature settings – Factory mid set blend temperature 45˚C, adjustable temperature setting – minimum 35˚C, maximum 55˚C
• Electrical requirements – SmartValve™ to mains Switched fused spur 3amp, processor main cable length 2m, required voltage 230 – 240V
• Electrical requirements – Controller to SmartValve™ Low voltage data cable length 10m – Data cable voltage 5V

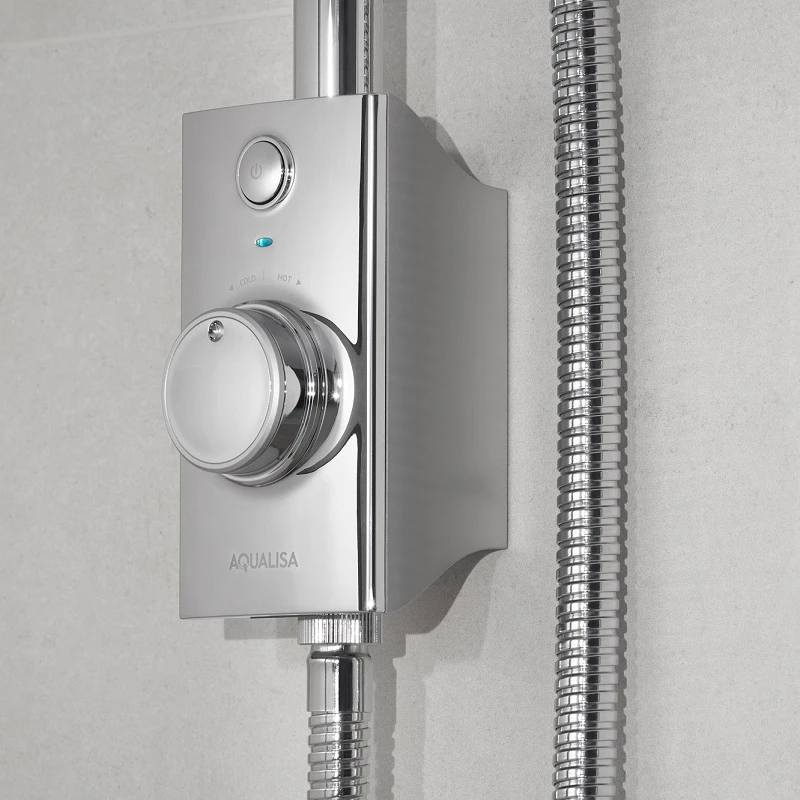

• One touch start/stop control
• LED display indicates when pre-selected temperature has been reached
• Wi-Fi & App compatible – control your product with your smart phone and smart home device e.g. Alexa
• App functions include start/stop, shower timer, user dashboard, usage tracker and help & support
• Aqualisa SmartValveTM

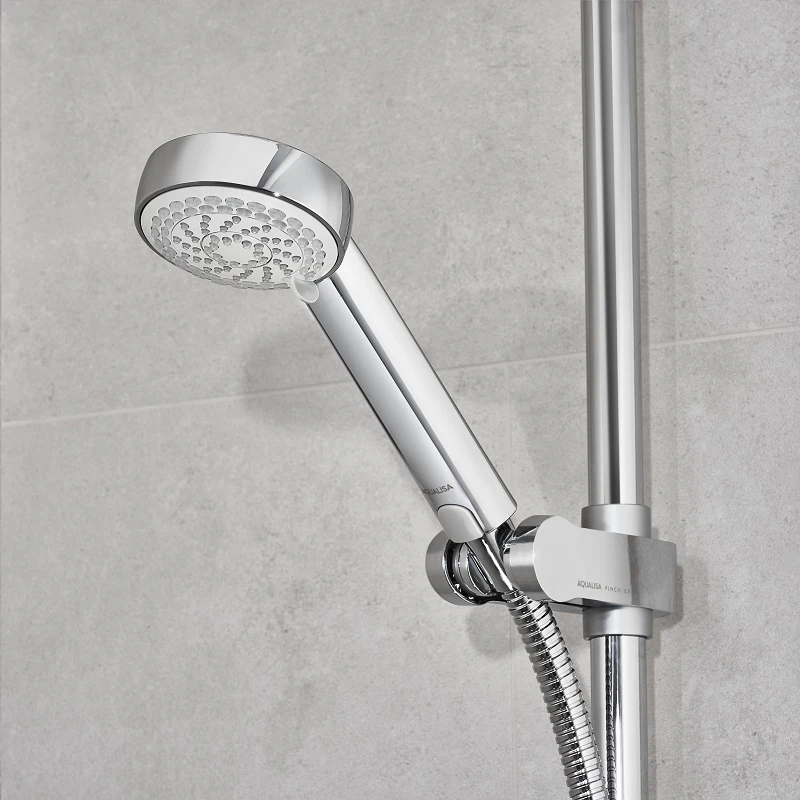

• 90mm, 4 spray patterns, including an eco-setting
• Compatible with wired remote control
• Guarantee period – 5-year guarantee – shower unit – 2-year guarantee – shower head and kit
• Approvals – CE Marking – BEAB

This product is part of a range – you can see the full selection of Aqualisa Visage Q Digital Smart Showers here.

The Aqualisa Visage Q Digital Smart Shower Exposed Adjustable – Gravity Pumped (VSQ.A2.EV.20) is a genuine, brand new Aqualisa product, covered by a Aqualisa manufacturer’s guarantee.

Available for same day despatch if ordered before 3:30pm Monday-Friday (otherwise despatching will be on the next working day). For the delivery options available for this product, please add it to your Basket or see our delivery options page.

Not what you’re looking for? See all Aqualisa Digital Showers.

For advice on this or any product, please call 01452 619836, email us at [email protected], or see our contact page.

• Brand Aqualisa
• Name Aqualisa Visage Q Digital Smart Shower Exposed Adjustable – Gravity Pumped (VSQ.A2.EV.20)
• SKU / MPN Aqualisa VSQ.A2.EV.20
• GTIN / EAN 5023942268111
• Categories Aqualisa Digital Showers
  Digital Showers
• Range Aqualisa Visage Q Digital Smart Showers
• Fitment Ceiling Fed
• Outlets Single
• Pressure Low Pressure
• Availability In Stock
• Condition Brand New
• Returns 30 day money-back guarantee
• Manufacturer Guarantee Yes
• PDF Guide Download (0.35 MB)
